Introduction

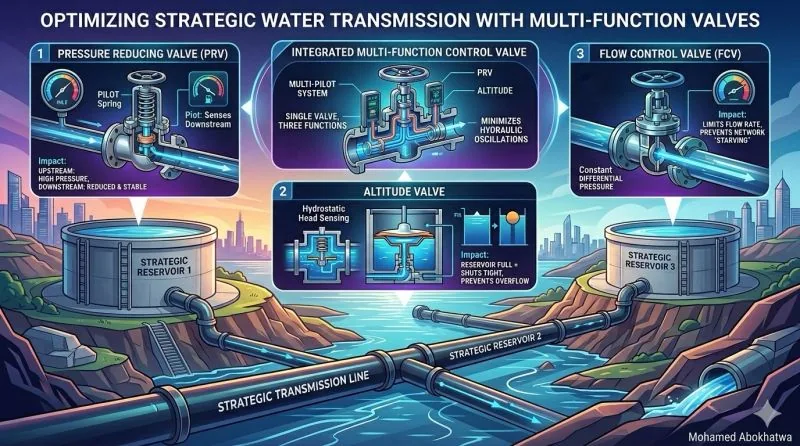

Strategic water transmission systems require precise hydraulic management to maintain supply reliability while protecting infrastructure. Three critical valve types — the PRV, the Altitude Valve, and the FCV — each serve distinct functions, and selecting the wrong type for a given application leads to system instability, pressure surges, or overflow events.
1. Pressure Reducing Valve (PRV)
Function: The primary guardian protecting downstream networks from excessive pressure.
Mechanism: Uses a spring-loaded pilot system that senses downstream pressure and modulates the main valve opening accordingly.
Pressure Impact: Maintains high upstream pressure while reducing and stabilizing downstream pressure to a preset limit — regardless of upstream pressure variations or demand changes.
Critical Design Note: PRV pilot systems have mechanical lag (1–3 seconds). During rapid transients, the valve position may not respond fast enough — making transient modeling with TCV approach essential for large-diameter mains.
2. Altitude Valve
Function: Prevents tank overflow without requiring electronic sensors or external control systems.
Mechanism: Senses the hydrostatic head from the water level in the tank; shuts automatically when water reaches the maximum set level.
Pressure Impact: Creates potential pressure surge (water hammer) upstream when it closes; downstream pressure drops to zero when fully closed. Requires surge mitigation on the supply main.
3. Flow Control Valve (FCV)
Function: Prevents network "starvation" by limiting maximum flow rate to a transmission main or zone.
Mechanism: Maintains a constant differential pressure across an internal orifice, limiting flow regardless of upstream pressure fluctuations.
Pressure Impact: Maintains upstream pressure through volume restriction. Downstream pressure varies based on demand — unlike the PRV which controls pressure directly.
4. Modern Integration: Multi-Pilot Single Valve
Advanced hydraulic control combines all three functions by stacking pilots on one valve body. This approach:
- Reduces physical footprint in valve chambers
- Eliminates maintenance costs of three separate valve assemblies
- Reduces risk of hydraulic oscillations from competing valve pilots
- Simplifies commissioning and operational adjustment
5. Selection Guide
| Application | Recommended Valve |
|---|---|
| Protecting downstream zone from high pressure | PRV |
| Filling storage tank without overflow | Altitude Valve |
| Limiting flow to prevent network starvation | FCV |
| All three functions in one chamber | Multi-Pilot Combination Valve |
