Introduction
Net Positive Suction Head (NPSH) is the most critical factor in pump selection and station layout. It represents the margin to prevent cavitation — the destructive formation and collapse of vapor bubbles that can destroy pump impellers and cause systemic hydraulic failure.
1. The Fundamental Equation
NPSHA = Habs ± Hs − Hf − Hvp
Design requirement: NPSHA > NPSHR + Safety Margin (typically 0.5–1.0 m)
| Variable | Definition |
|---|---|
| Habs | Absolute atmospheric pressure (~10.33 m at sea level) |
| Hs | Static head (positive if water above pump, negative if below) |
| Hf | Friction losses in suction piping, valves, and fittings |
| Hvp | Vapor pressure (temperature-dependent; ~0.24 m at 20°C, ~0.75 m at 40°C) |
| NPSHR | Manufacturer's required value; increases with flow rate |
2. Scenario-Based Design Analysis
Case A: Suction Lift (Pump Above Water Level)
The pump must "pull" the water up — Hs is negative. NPSHA decreases rapidly with lift height.
- Lift (Hs): −3.0 m | Friction (Hf): 0.5 m | Temp 30°C (Hvp ≈ 0.43 m)
- NPSHA = 10.33 − 3.0 − 0.5 − 0.43 = 6.4 m
Design solutions: Keep suction pipes short and straight. Use eccentric reducers (flat side UP) to prevent air pockets.
Case B: Flooded Suction (Water Above Pump)
Hs is positive — significantly increases NPSHA. Typical in SWRO feed pumps and booster stations. Install anti-vortex plates at tank outlet.
Case C: Submersible Pumps
Hs is always positive and large. Cavitation occurs only if minimum submergence depth requirements are unmet.

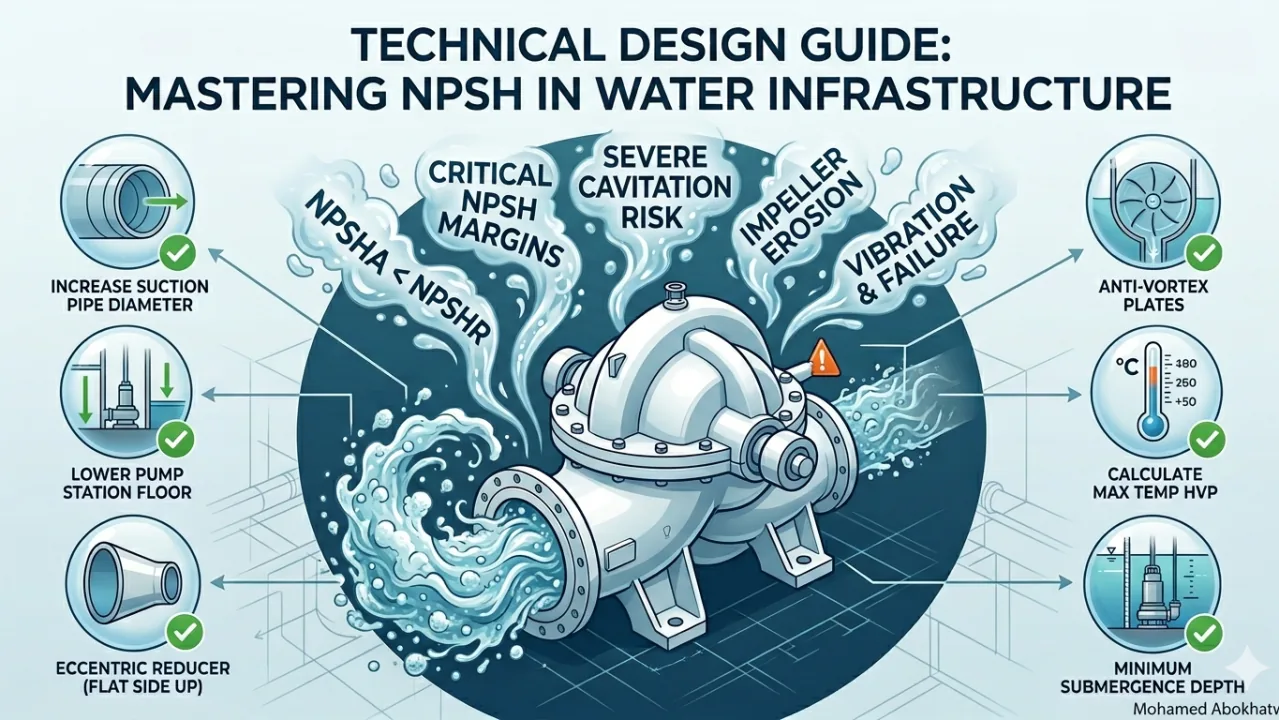

3. Summary: Problems & Engineering Solutions
| Problem | Cause | Solution |
|---|---|---|
| Classical Cavitation | NPSHA < NPSHR | Increase suction pipe diameter; lower pump floor level |
| Air Entrainment | Poor suction design or trapped air | Use eccentric reducers (flat side UP) |
| Vortex Formation | Shallow submergence in tanks | Install anti-vortex plates; raise minimum water level |
| High Temperature | Elevated vapor pressure in summer | Calculate NPSHA at maximum seawater temperature (40–45°C) |
4. Practical Design Example: Seawater Intake Pump
- Flow: 500 m³/h | NPSHR: 4.5 m | Min seawater level: 2.0 m below pump centerline
- Suction pipe DN 300 CS (Hf = 0.8 m) | Temperature: 35°C (Hvp = 0.57 m)
NPSHA = 10.33 − 2.0 − 0.8 − 0.57 = 6.96 m
6.96 m (NPSHA) > 4.5 m (NPSHR) + 1.0 m (safety margin) — Design is SAFE
References
- HI 9.6.1 (Hydraulic Institute): Rotodynamic Pumps Guideline for NPSH Margin
- KSB/Grundfos Pump Selection Manuals
- White, F. M. (2011). Fluid Mechanics.
